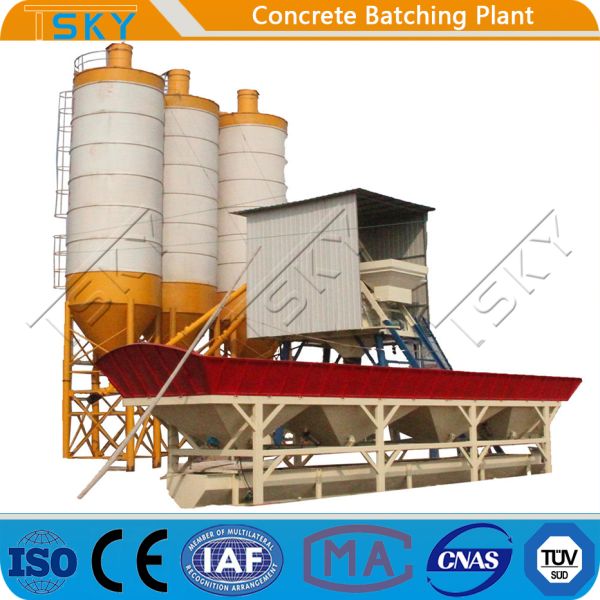

HZS35 Skip Hoist Feeding Modular Concrete Batching Plant
The concrete power plant is for large projects. It can serve in the same place for many years.
Features Of HZS35 Concrete Batch Plant:
1. HZS35 Small concrete batch plant which is used for simple and single concrete machine, Productivity about 30m3/h;
2. The control method including Program and manual control system;
3. Horizontal mixing equipment also called concrete batch plant;
4. Its advantages: Small size, easy to control automatically, high efficiency;
5. Low cost and low energy consumption.
The Description Of HZS35 Skip Hoist Feeding Modular Concrete Batching Plant:
HZS35 small concrete batch plant is a type of small concrete machine which adopts LSY type screw conveyor, its transmission system is divided into aggregate conveyor and powder conveyor.
1. Modular structure and convenient to remove
2. MS500 concrete mixer and aggregate to enhance the use of twin shaft compulsory concrete mixer, high mixing quality and high efficiency.
3. Aggregate batching using PLD1200 concrete batching machine, accurate measurement, high production efficiency.
4. Powder material is measured by electronic scale, and the proportioning accuracy is high.
5. Water using electronic scale measurement, will be more high accuracy.
6. Control System: The whole machine adopts computer control, which can not only control automatically, but also can be operated manually. The operation is simple and easy to control.
7. Suitable for small scale construction site, prefabricated parts factory and commodity concrete production plant, which is more suitable for railway, highway and other mobile strong concrete supply
The Layout Drawings Of HZS35 Skip Hoist Feeding Modular Concrete Batching Plant:
HZS35 Skip Hoist Feeding Modular Concrete Batching Plant Technical Data:
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS90 | HZS120 | HZS180 |
| Capacity (m3/h) | 25 | 35 | 50 | 60 | 90 | 120 | 180 |
| Mixer | MS500 | MS750 | MS1000 | MS1000 | MS1500 | MS2000 | MS3000 |
| Aggregate batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD2400 | PLD3200 | PLD4800 |
| Motor power(kw) | 18.5 | 30 | 18.5*2 | 18.5*2 | 30*2 | 37*2 | 55*2 |
| Cement Silo(T) | 60/100 | 60/100 | 100 | 100 | 100 | 100 | 100 |
| Aggregate Feeding type | Skip hopper | Skip hopper | Skip hopper | Belt type | Belt type | Belt type | Belt type |
| Discharge height (m) | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 |
| Cycle time (s) | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Weighing accuracy | Aggregate | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Cement | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Water | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Additive | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Note: | Customized concrete mixing plant is welcome |
The Main Parts' Characteristics
The mixing building adopts computer optimization design, advanced system configuration, high degree of modularizatoin, reasonable layout,
convenient installation and debugging, which can meet the needs of different users to the concrete building. Overhead type of aggregate storage
measurement system greatly improves the productivity of the equipment. The main components of the control system adopt international famous
brand of imported components. It assures the reliable work, stable performance and accurate measurement. Perfect industrial design and
thorough ergonomics processing make it unique structure, beautiful appearance, excellent environmental performance comfortable operation and
convenient maintenance.
HZS35 Skip Hoist Feeding Modular Concrete Batching Plant Main Parts
